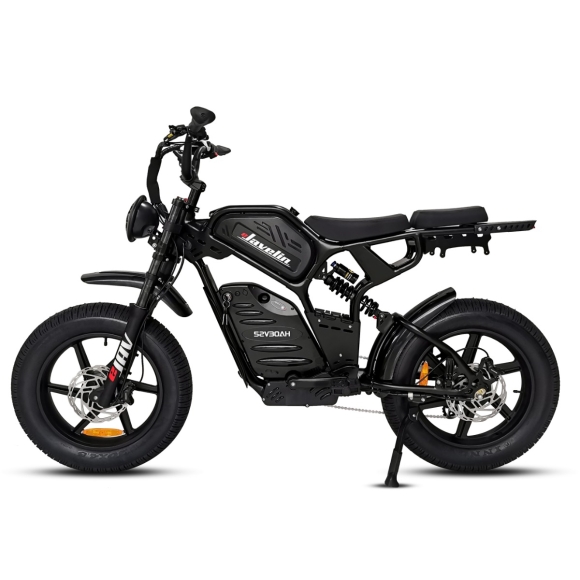

eJavelin Comanche

Classic Motorbike Style, Powerful & Fun.

Dual Motor pedal assist ebike for city touring and off-road performance. Excellent capacity for carrying cargo & sporting equipment. Engineered for performance on hills and range even in second passenger situations.

SKU:

SKU

EJA-COMANCHE

Detailed Description

Component Specifications

Warranty

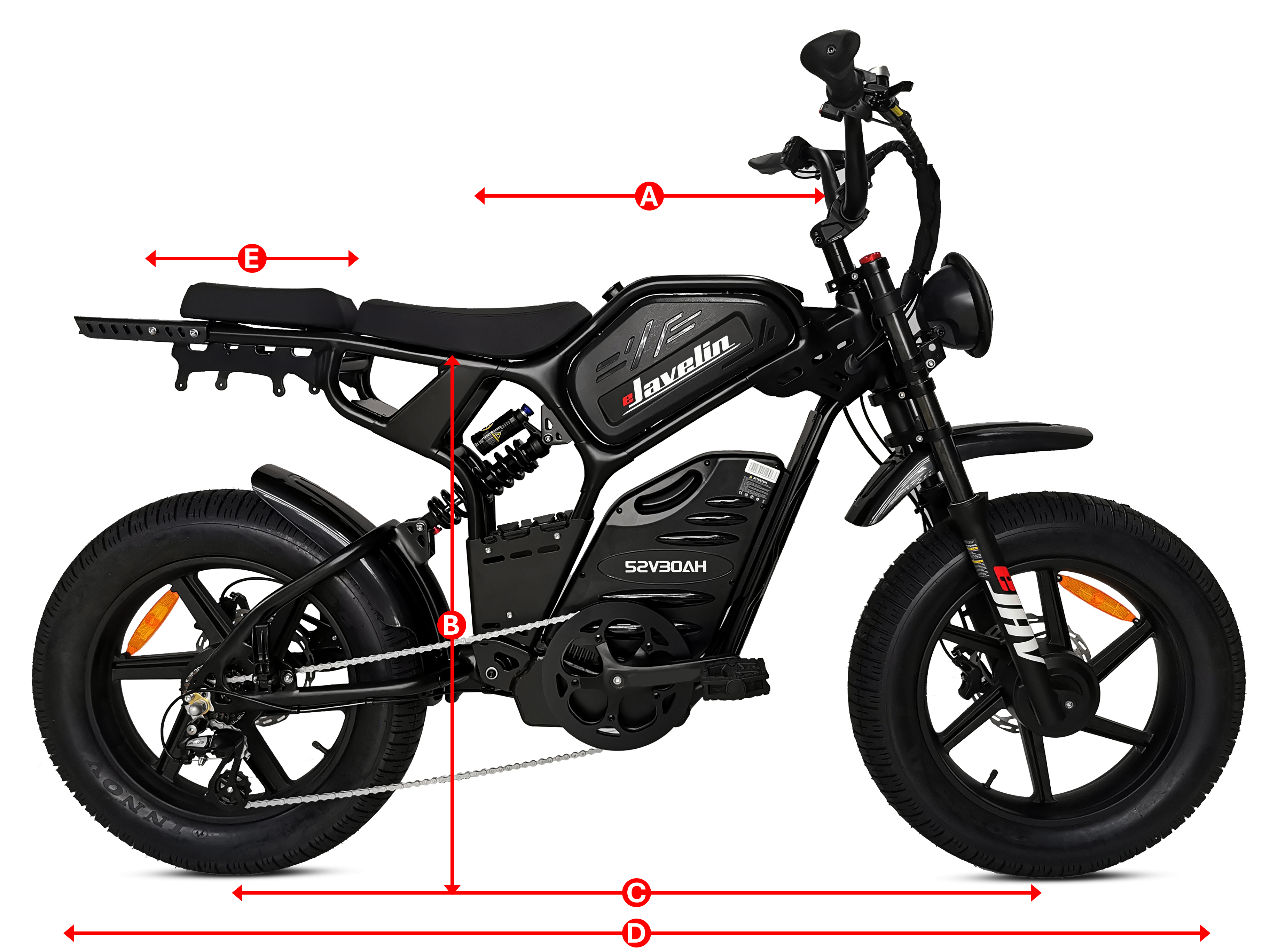

	The Comanche	Size
A	Reach	23.81"/ 60.5 cm
B	Seat Height	34.64"/ 88 cm
C	Wheelbase	50.86"/ 129.2 cm
D	Length	75.27"/ 191.2 cm
E	Rear Rack	15.74"/ 40 cm
	Frame Weight	18.07Lb / 8.2kg
	Total Weight	121.25Lb / 55kg

The Comanche is engineered with a quality 6061 aluminum, full suspension proprietary frame. 7 speed gearing is integrated to dual motor power. The Comanche offers users intuitive pedal assist options for a range of on and off road riding circumstances. Riders can effortlessly change performance settings, integrated to the custom eJavelin user interface that is displayed on a high quality, color TFT LCD. The LCD is weather resistant, rated at IP66, and features a USB charging port that will charge any standard smartphone.

The Comanche offers 20” x 5.0” puncture resistant fat tires, and adjustable tension front shocks with integrated frame suspension. A quality assured powerful 52V 30Ah Samsung 21700 cells, cell battery supports ample volts and amp hours for power and range.

eJavelin has engineered the Comanche with fully integrated lighting featuring a powerful front headlight and nighttime rear safety lighting. The rear lights display braking and offer left and right signaling. The Comanche comes standard with an integrated lock box carrying case forward of the rider.

Title

Motor
1. 750W Option
  Type: brushless hub direct drive
  Nominal Voltage: 52V
  Rated Power: 750W
  Max. Effective Torque: 78Nm
  Weight: Front 6.6Kg, Rear 6.9Kg
  Weatherproof Rating: IP54
Frame
1. Design: Proprietary eJavelin Comanche Frame
  Material: 6061 aluminum alloy
  Construction: full suspension
  Weight: 8.2 kg / 18lbs
Battery
1. Power Output: 52V, 30Ah
2. IP54 weather resistant
3. BMS: 55A current limit
4. Cell Type: Samsung 21700 lithium ion
5. Housing Materials: fire resistant polycarbonate & ABS
6. Charger: 52V 3A, 5-8 hour fast charging, UL & CE certified
7. Battery Lock: anti-theft lock & key
Suspension
1. Front Suspension: BMX grade, aluminum, inverted suspension, height 540mm, tension adjustable damping, hydraulic lock / unlock
2. Center Frame Shock: Single configuration, KKY BA27RC 240MM 450LBS / IN T&B:8*30 spring with nitrogen anti cavitation, adjustable tension and damping
Wheels
1. Rims: 20'' x 4.0'' A356 aluminium alloy
2. ires: INNOVA IA-2149 Black 20inches*5.0, puncture resistant with durable all-purpose on / off road tread
3. Tire Size: 20'' x 4.0''
Brakes
1. TEKTRO E3940 4 piston hydraulic with 203mm discs
2. Brand: TEKTRO
3. System: rugged E3940 four piston hydraulic with power cut-off sensor
4. Rotor Discs: Stainless Steel, 203 mm x 2.3 mm
Drivetrain
1. Cassette: Shimano 7 speed 50R
2. Chain Wheel: 52 tooth RPF-FD20SG aluminum alloy
3. Chain Wheel Guard: molded polycarbonate
4. Chain: KMC Z7RB, 7 speed with patented RB corrosion resistant coating
5. Chain Wheel Cranks: 164mm, aluminum alloy
6. Derailleur: Shimano 7 speed 50R
7. Peddles: Wellgo LU-990, PC / kraton body, boron spindle, stainless steel bearings, rubber anti slip padding, 107 x 94 x34 mm
Lights
1. Integrated Headlight: DH009, 500 Lumens, IP64 weather resistant with integrated left / right turn signaling & horn
2. Integrated Taillight: DR011, IP64 weather resistant with integrated brake light & left / right turn signaling
3. Reflection: Dual Wheel, Yellow, CHG-GC-787SW-2
Steering
1. eJavelin Propriety Display: Large 3.5'' TFT color LCD, IP66 weather resistance, USB charge port with weather guard for charging smart phones.
2. Display Functions: speed, power, battery, trip distance, odometer & Pedal assist Settings for OR (off road /dual motor mode), N (neutral), UPT (urban pedestrian traffic), ECO (optimal range performance, eJAV (turbo).
3. Handlebar: Aluminum JY-NR26, rise 150mm, width 700mm, back sweep 15 degrees, barbore 31.8 mm, weight 458.5 grams
4. Stem: adjustable, aluminum JY-DB2568, 35 mm length, with quad 304 stainless steel screw set
5. Throttle: right hand, half twist FT23, throttle on / off switch, ABS polycarbonate material, input 5V, output 5V, with matching left-hand grip
6. Shifter: Shimano 7 speed 50R
7. Integrated Switches: DK336with system on / off, headlight on / off, left right turn signaling, and horn
Cargo
1. Center Mount Storage: Weather resistant carry compartment, ABS plastic, complete with combination code lock top cover
2. Rear Rack: 6061 aluminum allow, 217.2 mm x 176.5 cm, 25Kg advised max load capacity, comes complete with integrated removable passenger seat
3. eJav Left / Right Saddle Bag Compatible: yes
4. eJav Side Mount Carry System Compatible: yes
Saddle
1. Design: Fixed position motorcycle saddle, optional passenger seat & pre assembled foldable aluminum passenger foot pegs
2. Construction: polycarbonate core wrapped in durable memory foam with weather resistant PU covering
3. Dimensions:
  - Saddle 359.5mm, 234.4mm, 78.6mm, 555.5 grams
  - Passenger seat 249.6mm, 171.2mm, 56.3mm, 364.5 grams

Motor
1. Dual: Front & Rear seamlessly engage in Off Road Mode
  Type: brushless hub direct drive
  Nominal Voltage: 52V
  Rated Power: 750W
  Max. Effective Torque: 78Nm
  Weight: Front 6.6Kg, Rear 6.9Kg
  Weatherproof Rating: IP54
Frame
1. Design: Proprietary eJavelin Comanche Frame
  Material: 6061 aluminum alloy
  Construction: full suspension
  Weight: 8.2 kg / 18lbs
Battery
1. Power Output: 52V, 30Ah
2. IP54 weather resistant
3. BMS: 55A current limit
4. Cell Type: Samsung 21700 lithium ion
5. Housing Materials: fire resistant polycarbonate & ABS
6. Charger: 52V 3A, 5-8 hour fast charging, UL & CE certified
7. Battery Lock: anti-theft lock & key
Suspension
1. Front Suspension: BMX grade, aluminum, inverted suspension, height 540mm, tension adjustable damping, hydraulic lock / unlock
2. Center Frame Shock: Single configuration, KKY BA27RC 240MM 450LBS / IN T&B:8*30 spring with nitrogen anti cavitation, adjustable tension and damping
Wheels
1. Rims: 20'' x 4.0'' A356 aluminium alloy
2. ires: INNOVA IA-2149 Black 20inches*5.0, puncture resistant with durable all-purpose on / off road tread
3. Tire Size: 20'' x 5.0''
Brakes
1. TEKTRO E3940 4 piston hydraulic with 203mm discs
2. Brand: TEKTRO
3. System: rugged E3940 four piston hydraulic with power cut-off sensor
4. Rotor Discs: Stainless Steel, 203 mm x 2.3 mm
Drivetrain
1. Cassette: Shimano 7 speed 50R
2. Chain Wheel: 52 tooth RPF-FD20SG aluminum alloy
3. Chain Wheel Guard: molded polycarbonate
4. Chain: KMC Z7RB, 7 speed with patented RB corrosion resistant coating
5. Chain Wheel Cranks: 164mm, aluminum alloy
6. Derailleur: Shimano 7 speed 50R
7. Peddles: Wellgo LU-990, PC / kraton body, boron spindle, stainless steel bearings, rubber anti slip padding, 107 x 94 x34 mm
Lights
1. Integrated Headlight: DH009, 500 Lumens, IP64 weather resistant with integrated left / right turn signaling & horn
2. Integrated Taillight: DR011, IP64 weather resistant with integrated brake light & left / right turn signaling
3. Reflection: Dual Wheel, Yellow, CHG-GC-787SW-2
Steering
1. eJavelin Propriety Display: Large 3.5'' TFT color LCD, IP66 weather resistance, USB charge port with weather guard for charging smart phones.
2. Display Functions: speed, power, battery, trip distance, odometer & Pedal assist Settings for OR (off road /dual motor mode), N (neutral), UPT (urban pedestrian traffic), ECO (optimal range performance, eJAV (turbo).
3. Handlebar: Aluminum JY-NR26, rise 150mm, width 700mm, back sweep 15 degrees, barbore 31.8 mm, weight 458.5 grams
4. Stem: adjustable, aluminum JY-DB2568, 35 mm length, with quad 304 stainless steel screw set
5. Throttle: right hand, half twist FT23, throttle on / off switch, ABS polycarbonate material, input 5V, output 5V, with matching left-hand grip
6. Shifter: Shimano 7 speed 50R
7. Integrated Switches: DK336with system on / off, headlight on / off, left right turn signaling, and horn
Cargo
1. Center Mount Storage: Weather resistant carry compartment, ABS plastic, complete with combination code lock top cover
2. Rear Rack: 6061 aluminum allow, 217.2 mm x 176.5 cm, 25Kg advised max load capacity, comes complete with integrated removable passenger seat
3. eJav Left / Right Saddle Bag Compatible: yes
4. eJav Side Mount Carry System Compatible: yes
Saddle
1. Design: Fixed position motorcycle saddle, optional passenger seat & pre assembled foldable aluminum passenger foot pegs
2. Construction: polycarbonate core wrapped in durable memory foam with weather resistant PU covering
3. Dimensions:
  Saddle 359.5mm, 234.4mm, 78.6mm, 555.5 grams
  Passenger seat 249.6mm, 171.2mm, 56.3mm, 364.5 grams

eJavelin Warranty Process

All warranty requests must be submitted via email to info@eJavelin.com, along with proof of purchase, and a description of defect. eJavelin may require pictures of the defect in question in order to validate a claim.

Batteries Parts & Electric Vehicles Accessories

eJavelin Inc. warranties our products against material and assembly defects.

All original components and hardware installed on eJavelin electric vehicles (excluding batteries) are warrantied for a period of 24 months from the date of purchase.

All batteries, sold either separately or with eJavelin electric vehicles, are warrantied for a period of 12 months from the date of purchase.

All accessories are warrantied for a period of 12 months from the date of purchase.

Issues resulting from normal use do not qualify for eJavelin warranty authorization. eJavelin does not warranty against brake pad wear, tire tread wear, punctured inner tubes / flat tires, damage caused by pressure washing, scratched surfaces or physical damage caused by customer use.

eJavelin does not warranty against damage caused by customers either in misuse of products or when customers attempt to affect repairs. The installation of third-party components not supplied by eJavelin may, upon eJavelin's discretion, void the eJavelin warranty.

Customers must submit all warranty claims via email to info@eJavelin.com. Warranty request must include proof of purchase from eJavelin.com, an authorized eJavelin reseller, or an authorized eJavelin representative agent. Please also include your name, mailing address, email address, and phone number, so that we may contact you.

eJavelin reserves the exclusive right to approve or reject all warranty claims. eJavelin will require detailed pictures and descriptions of defective product requested for warranty replacement, as part of the warranty approval process.

eJavelin will repair or replace defective products or components, at eJavelin's exclusive discretion. In certain instances, customers will be required to affect replacement component installation. In such instances, eJavelin will provide complete and sufficient assembly guidance.

eJavelin will cover shipping expense for replacement components and accessories.

The submersion of non-marine grade eJavelin electric vehicles in deep water is dangerous and will void your warranty. DO NOT OPERATE eJavelin EBIKES IN STANDING WATER (LAKES, STREAMS, OCEANS, SWIMMING POOLS, DEEP PUDDLES)
